SECTION 04 • IS 8360 (PART 2 & 3) & ISO 4427 COMPLIANT

Fabricated Pipe Fittings

Engineered segmented multi-piece HDPE fittings machine-welded on automatic hydraulic fitting fabrication machines. Fully compliant with Bureau of Indian Standards (BIS) IS 8360 Part 2 & Part 3, and ISO 4427 Part 3. Custom manufactured in 22.5°, 45°, 60°, and 90° angles with specific bending radii (R=1.0D & R=1.5D).

architecture RANGE: 20 MM TO 630 MM PN6, PN10 & PN16 (PE80 & PE100) 2, 3 & 4-Piece Segmented Designs Automatic Alignment & Hydraulic Welding
Fabricated Line: Segmented Engineering Assemblies
arrow_back All Piping Families send Request Fabricated Quote
SR. 01 IS 8360 CERTIFIED
Fabricated Bends 22.5, 45, 60, 90 Deg Range 20mm to 630mm Segmented Fusion Seams

Fabricated Segmented Bends

Multi-piece mitered pipe bends precision cut and butt-welded on automatic fabrication frames. Available in 22.5°, 45°, 60°, and 90° deflection angles. Built in 2-piece, 3-piece, and 4-piece configurations with standardized radii $R = 1.0D$ and $R = 1.5D$ to minimize friction loss.

Size Range:20 mm to 630 mm
Pressure Ratings:PN6, PN10 & PN16
Angles & Radii:22.5°, 45°, 60°, 90° (R=1.0D, 1.5D)
Material:PE80 & PE100 Virgin Pipe Stock
SR. 02 ISO 4427 PART 3

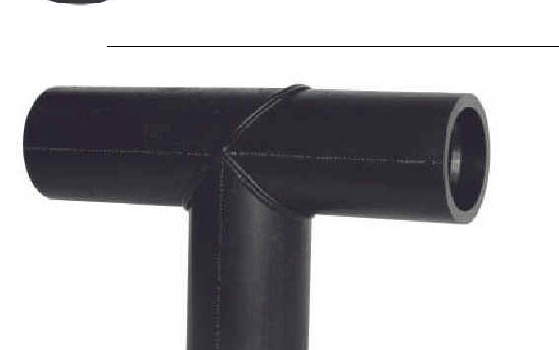

Fabricated Equal and Reducing Tee Range 20mm to 630mm Butt & EF Joint Ready

Fabricated Equal & Reducing Tees

Engineered saddle-welded and spigot-welded branching tees for mainline headers and pipeline distribution manifolds. Fully compatible with both on-site butt fusion jointing and electrofusion sleeve couplers. Available in equal diameters and custom reduced off-takes.

Size Range:20 mm to 630 mm
Pressure Ratings:PN10 & PN16
Jointing Method:Butt Welding & Electrofusion Compatible
Material:PE80 & PE100 Polyethylene
device_hub CUSTOM FABRICATION CAPABILITY

Air Valve Manifolds & Branch Arrays

Specialized custom-engineered reducing branch headers for air release valves, pressure relief bypass loops, and pump discharge manifolds manufactured exactly per project engineering drawings.

precision_manufacturing IN-HOUSE MACHINERY

Automatic Multi-Angle Fitting Machines

Our multi-angle fitting fabrication machines handle pipe diameters up to 630 mm with hydraulic clamping jaws and electronic digital heating plates for precision temperature control and zero seam misalignment.

Capacity: Up to 630 mm Outer Diameter
TECHNICAL ESTIMATE DESK

Request Fabricated Fittings Quote

Mention your required bend angles (22.5°, 45°, 60°, 90°), bending radius (1.0D or 1.5D), pipe outer diameter, and SDR/PN rating.
